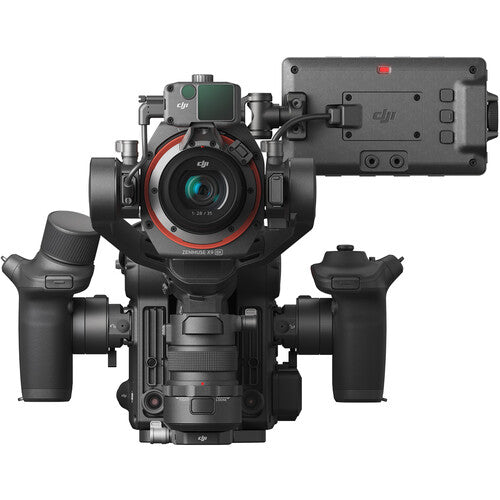

DJI Ronin 4D 4-Axis Cinema Camera 8K Combo

29 people are viewing this right now
Regular price $11,499.00
Sale price $11,499.00 Regular price $11,499.00
  • Free Shipping & Returns: On all orders over $50

Description

DJI R4D8K Ronin 4D 4-Axis Cinema Camera 8K Combo (Coming soon)

4-Axis Cinema Camera

DJI Ronin 4D

The Future Is Rolling

Cinematic Imaging | 4-Axis Stabilization | LiDAR Focusing | Wireless Transmission & Control

With DJI Ronin 4D, our most advanced technologies have been integrated into one cutting-edge and comprehensive cinematography solution, which offers groundbreaking flexibility to solo cinematographers and unlimited possibilities for coordinated shooting. This powerful, next-generation cinema camera was designed and built to be the future of filmmaking.

1. Integrated Design: The Future Is All in One

Integrated and Modular: Both Realized in One Camera

DJI Ronin 4D offers a completely unique design. Crafted with carbon fiber and aluminum magnesium, its solid body integrates the imaging, stabilization, and focusing systems, as well as wireless transmission and control. This avoids time-consuming setup and enables quicker shooting. Users can now enjoy compact convenience along with the expansive possibilities from modular accessories.


Main Body

Zenmuse X9-8K Gimbal Camera

DL 35mm F2.8 Lens

Top Handle

High-Bright Main Monitor

Hand Grips

4D Expansion Plate (SDI/XLR/TC)

4D Video Transmitter

TB50 Battery Compartment

TB50 Intelligent Battery

LiDAR Range Finder

X9 Focus Motor

2. Cinematic Imaging System: Designed for Pros

Processing Power

Ronin 4D is equipped with Zenmuse X9, DJI’s flagship full-frame camera. It also features DJI’s latest image processing system, CineCore 3.0. This system uses DJI’s proprietary chip to provide advanced processor architecture, offering extremely high-performance computing power in a cinema camera today. CineCore 3.0 allows Ronin 4D to support internal recording of Apple ProRes RAW, ProRes 422 HQ, and H.264 video. It also supports up to 8K/75fps and 4K/120fps video recording, delivering multiple options for professional-level creation.


Full-Frame Sensor



X9-8K

X9-6K

 Max Recording Specs

8K/75fps

6K/60fps

4K/120fps

Dynamic Range

14+ Stops

14+ Stops

Native ISO

800/4000

800/5000


Download Sample Footage

Complete Recording Specifications

Resolution

DCI 8K (8192×4320)/60fps video retains every little detail, from rich foliage to inspiring architecture, skin texture to strands of hair, all with flawless quality. For those who need to output in 4K, recording in 8K offers unprecedented creative options with more flexibility for cropping, re-composing, and stabilizing videos in post.

High ISO

Zenmuse X9 supports dual native ISO (X9-8K: 800/4000; X9-6K: 800/5000), which records images with exquisite detail and minimal noise, even when filming an evening cityscape or beach, or a scene lit by dim candlelight.


Play Sample Footage

Download Sample Footage

Dynamic Range

With 14+ stops of dynamic range, Zenmuse X9 delivers natural transitions of highlights and shadows in complex lighting conditions such as backlit scenes and direct sunlight. These traditionally difficult scenes can now be captured easily and with confidence.


Play Sample Footage

Download Sample Footage

X9-6K EI Grayscale

X9-8K EI Grayscale

Color Science

With the DJI Cinema Color System (DCCS) and robust computing power provided by CineCore 3.0, Zenmuse X9 is able to give images a cinematic look by retaining authentic and accurate colors. It also supports the industry-standard ACES workflow for effortless compatibility with the color tones of other cinema cameras.


Neon Lights | Sunlight | Sunset | Overcast | Street Lights

Play Sample Footage

Download Sample Footage

Built-In 9-Stop ND Filters

X9 has 9-stop built-in high-quality ND filters (ND 2 to ND 512, or ND 0.3 to ND 2.7) that can be quickly and easily switched thanks to an internal motorized system. These filters were also designed to match and compliment the color science of Ronin 4D.

DL Lenses

X9’s standard DL mount supports three compact full-frame prime lenses. The housings are made of lightweight, monocoque carbon fiber, so each lens weighs just about 180 g. More DJI lenses will be available in the future.

Interchangeable Mounts

X9 supports interchangeable lens mounts, including DJI’s proprietary DL mount as well as third-party mounts like Leica M. Ultra-wide, f/0.95 large-aperture, electronic zoom, macro, and anamorphic lenses that are compatible with traditional cinema cameras also work on X9, providing flexible lens options.


DL Mount | M Mount | E Mount

Wireless Control

Whether you’re using manual or autofocus lenses, dedicated modules mounted to X9 can achieve wireless lens control and even autofocusing.

Lens Group

Recommended Lenses

3. 4-Axis Stabilization System: Steady in Every Way

4-Axis Stabilization

DJI Ronin 4D adds a Z-axis to the traditional 3-axis gimbal, which effectively decreases vertical camera shake and offers stabilization performance on par with a dolly. The four axes work together with a downward ToF sensor, forward and downward dual-visual sensors, a built-in IMU and barometer, and an advanced new algorithm to bring the overall stabilization to a whole new level.


Z-Axis | ToF Sensor | Forward Visual Sensor | Downward Visual Sensor | IMU | Barometer


When this compact body combines with its powerful stabilization capabilities, complex camera movements that used to be very costly to achieve are now easily attainable.


Running Shots

Staircase Shots

Close-Up Sliding Shots

Confined-Space Shots

Z-Axis On | Z-Axis Off

Integrated Gimbal Camera

Ronin 4D integrates the imaging and stabilization systems while keeping only the sensor and necessary optical components in the gimbal camera. The tilt axis of the gimbal uses dual symmetric motors, whereas both the pan axis and the roll axis are designed with an additional stiffness buffer.


The compact and portable gimbal system allows shooting to begin without the need for tedious manual balancing. This also delivers stable footage, even with lenses that have a shifting center of gravity during use.


Single-Handed | Dual-Handed | Shoulder Mount | Tripod


With a highly integrated body and robust motor force, Ronin 4D offers the best stabilizing and tracking performance of the entire Ronin Series so far at an incredibly light weight. Additionally, it can switch to Sport mode with the press of a button, allowing the gimbal to react quickly to the cinematographer's movements.


It also supports wireless gimbal control and versatile mounting configurations for varied shooting scenarios.


Suction Cup Mount (Overslung) | Suction Cup Mount (Underslung) | Jib | Cable Cam

ActiveTrack Pro

DJI’s proprietary computer vision, deep learning technology, and the robust computing power of CineCore 3.0 combine in ActiveTrack Pro, which enables cinema-standard tracking shots, even in just one take. This technology also allows subjects to be tracked from longer distances and features composition adjustment with continuous autofocusing to keep subjects in focus during tracking shots.
